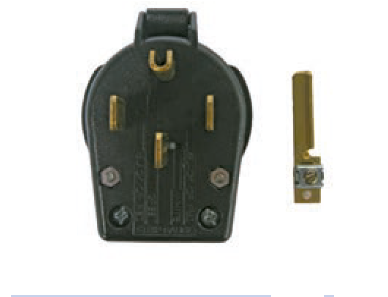

Description: 30/50A, 125/250V, Industrial Grade Straight Blade Plug
Color: Black
Rating: 30/50A, 125/250VAC
NEMA: 14-30P/14-50P
Pole: 3
Wire: 4
Dielectric Voltage: Withstands 2000V per UL498
Housing Material: Thermoplastic Nylon
Blades/Contacts: Brass
Assembly Screws: Steel Zinc Plated
· Solid brass plug blades are firmly embedded in body
· Terminal screw clamp are designed to contain wire and prevent binding
· Terminal screws backed out-ready for wiring
· Terminals in individual chambers to positively insulate conductors
· Armored housing automatically grounded
· Limited Two-Year Warranty
· UL 498 comply
· ROHS comply
· Environmental: Flammability, UL-94, Rated V0
· Operating Temperature: -40° F to 149° F (-40° C to 65° C)
