JCT006

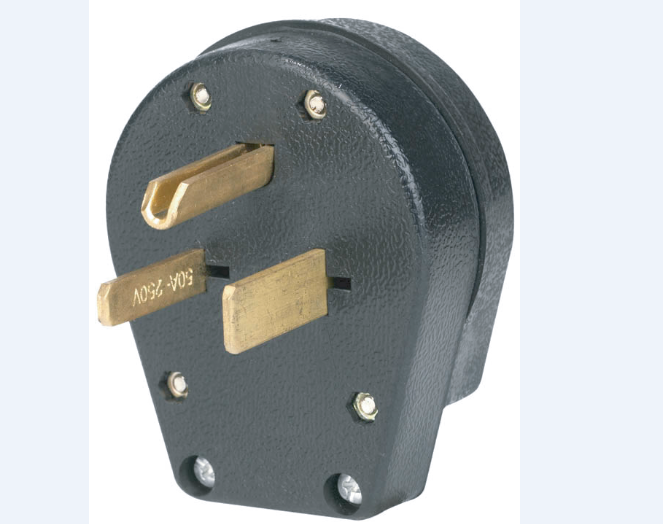

Description: 30/50A, 250V, Industrial Grade Straight Blade Plug

Color: Black

Rating: 30/50A, 250VAC

NEMA: 6-30P/6-50P

Pole: 3

Wire: 3

Dielectric Voltage: Withstands 2000V per UL498

Housing Material: Thermoplastic Nylon

Blades/Contacts: Brass

Assembly Screws: Steel Zinc Plated

· Solid brass plug blades are firmly embedded in body

· Terminal screw clamp are designed to contain wire and prevent binding

· Terminal screws backed out-ready for wiring

· Terminals in individual chambers to positively insulate conductors

· Armored housing automatically grounded

· Limited Two-Year Warranty

· UL 498 comply

· ROHS comply

· Environmental: Flammability, UL-94, Rated V0

· Operating Temperature: -40° F to 149° F (-40° C to 65° C)
