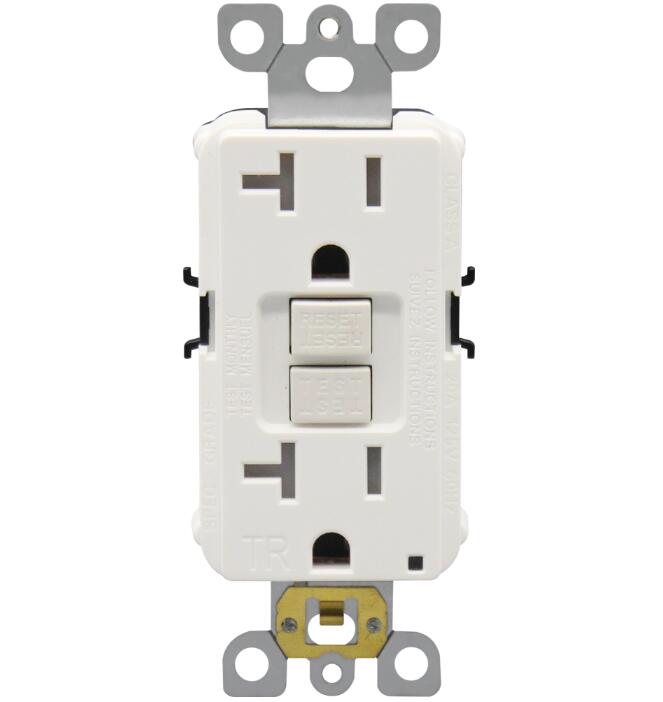

LGA20-TR

Description: 20 Amp, 125 Volt GFCI Receptacle, Tamper Resistant, UL Listing

Color: White, Ivory, Almond, Black

Rating: 20A, 125VAC

NEMA: 5-20R

Pole: 2

Wire: 3

Termination: Side & Back

Face Material: Thermoplastic

Body Material: Thermoplastic

· Provides continuous ground fault protection - detects and trips on actual ground fault even when self-test is being conducted.

· Auto-monitoring meeting the newest UL requirement.

· End of Life light provide visual indication.

· Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal.

· Electronics are designed to minimize any false triggers.

· Reduced depth makes it easier to install in any electrical box, even shallow ones.

· Terminals allow for easy wiring options - back and side wire capable.

· External back wire clamps provide visual indication of proper wire seating.

· Withstands high torque and resists wire pullout.

· Standard brass self-grounding clip.

· Tripping threshold:5mA, Tripping time<25ms.

· Improved immunity to high-frequency noise reduces nuisance tripping.

· Advanced electronics design provides superior resistance to electrical surges and over-voltages.

· Compatible with all Decora devices and wallplates; available in select Decora colors.

· UL Listing, E495342

· ROHS comply

· Environmental: Flammability, UL-94, Rated V0

· Operating Temperature: -40° F to 149° F (-40° C to 65° C)
