JCT003

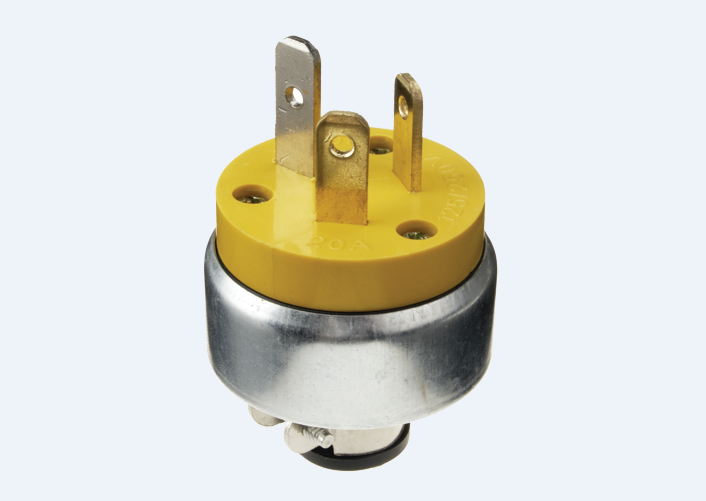

Description: 20A, 125/250V, Armored Straight Blade Plug, NEMA 10-20P

Rating: 20A, 125/250VAC

NEMA: 10-20P

Pole: 2

Wire: 3

Dielectric Voltage: Withstands 2000V per UL498

Blade Holder: Thermoplastic Nylon

Blades/Contacts: Brass

· Solid brass plug blades are firmly embedded in body

· Terminal screw clamp are designed to contain wire and prevent binding

· Terminal screws backed out-ready for wiring

· Terminals in individual chambers to positively insulate conductors

· Armored housing automatically grounded

· Limited Two-Year Warranty

· UL 498 comply

· ROHS comply

· Environmental: Flammability, UL-94, Rated V0

· Operating Temperature: -40° F to 149° F (-40° C to 65° C)
