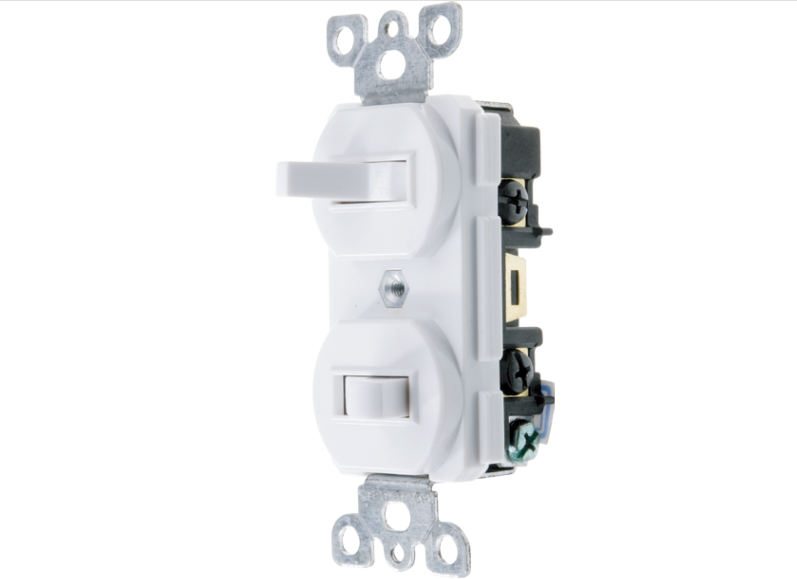

Description: 15 Amp, 120/277 Volt, Duplex Style Single-Pole/3-Way AC Combination Switch, Commercial Grade
Color: White, Ivory, Almond, Black
Rating: 15A, 120/277VAC
Grounding: Grounding
Termination: Side
Dielectric Voltage: Withstands 1500V for 1 minute
Face Material: Thermoplastic PC
Body Material: Thermoplastic Nylon
· Extra-long, through-body strap elimanates floating installations and imperfect applications
· Heavy-duty impact-resistant thermoplastic construction for long service life
· Back and side-wiring terminals accept both solid and stranded wire to ease installation
· Smooth, quiet paddle and toggle action
· Narrow back body leaves more room for wires in the box
· Tri-Drive ground, terminal and mounting screws ease installation
· Terminal screw backed out ready for wiring
· Limited Two-Year Warranty
· UL Listed UL 20, UL file #E310558
· ROHS comply
· Environmental: Flammability, UL-94, Rated V0
· Operating Temperature: -40° F to 149° F (-40° C to 65° C)
