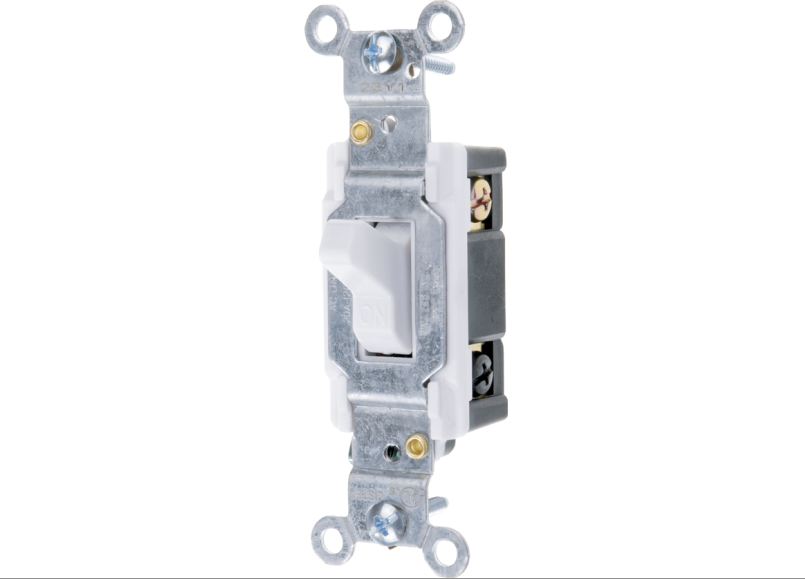

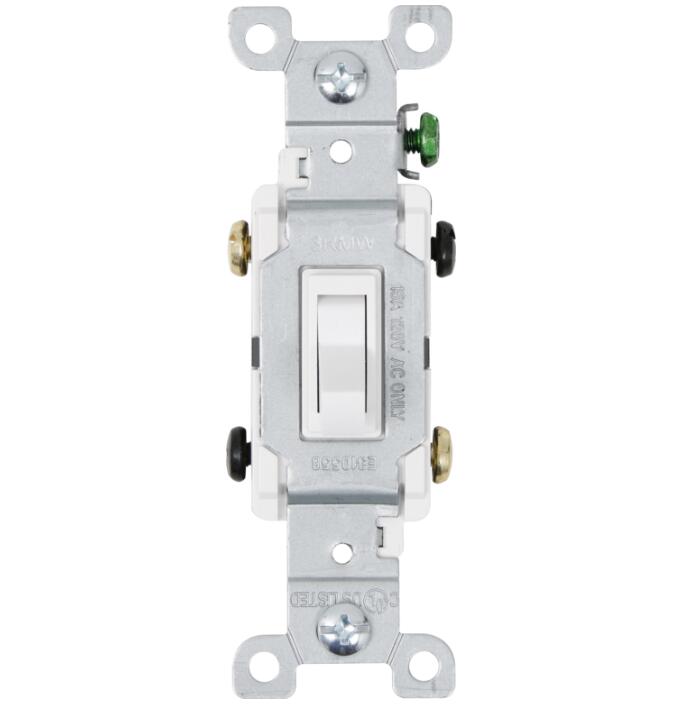

Description: 20A, 120/277V, Toggle Framed Double-Pole AC Quiet Switch

Color: White, Ivory, Almond, Black

Rating: 15A, 120/277VAC

Grounding: Grounding

Termination: Side & Push-in

Dielectric Voltage: Withstands 1500V for 1 minute

Actuator Material: Thermoplastic PC

Body Material: Thermoplastic Nylon

· Extra-long, through-body strap elimanates floating installations and imperfect applications

· Heavy-duty impact-resistant thermoplastic construction for long service life

· Back and side-wiring terminals accept both solid and stranded wire to ease installation

· Smooth, quiet paddle and toggle action

· Narrow back body leaves more room for wires in the box

· Tri-Drive ground, terminal and mounting screws ease installation

· Terminal screw backed out ready for wiring

· Limited Two-Year Warranty

· UL Listed 20, UL file #E310558

· ROHS comply

· Environmental: Flammability, UL-94, Rated V0

· Operating Temperature: -40° F to 149° F (-40° C to 65° C)
