JCZ030

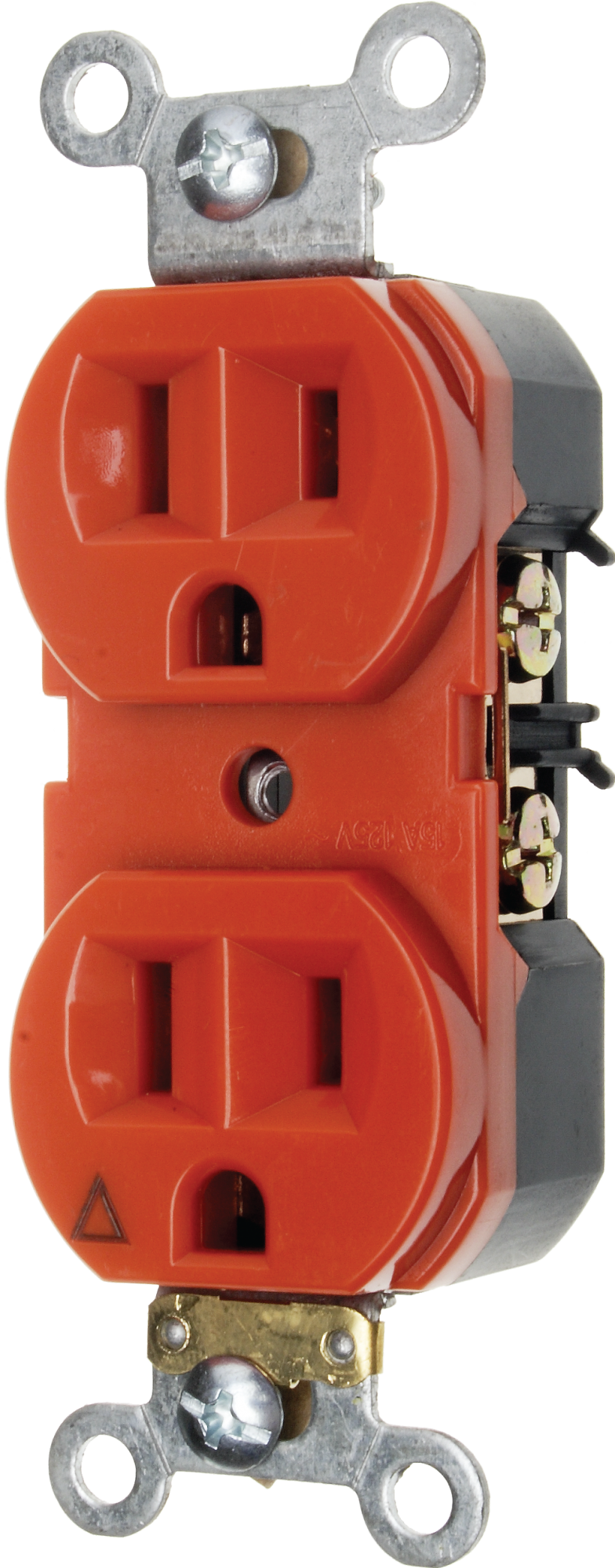

Description: 15 Amp, 125 Volt, Duplex Electrical Receptacle, Hospital Grade

Color: Red

Rating: 15A, 125VAC

NEMA: 5-15R

Pole: 2

Wire: 3

Grounding: Grounding

Termination: Side & Back

Dielectric Voltage: Withstands 1500V for 1 minute

Face Material: Thermoplastic PC

Body Material: Thermoplastic Nylon

· Terminal screws accept up to No. 12 AWG copper or copper-clad wire

· Quickwire push-in terminals accept No. 14 AWG solid copper wire only

· Double-wipe power contacts for reliable conductivity and plug retention

· Impact resistant thermoplastic construction

· Heavy-gauge, rust resistant steel mounting strap

· Double-wipe ground contacts ensure long-term ground retention

· Tri-Drive ground, terminal and mounting screws ease installation

· Captive mounting screws

· Limited Two-Year Warranty

· UL Listed UL498, UL file #E304935

· ROHS comply

· Environmental: Flammability, UL-94, Rated V0

· Operating Temperature: -40° F to 149° F (-40° C to 65° C)
