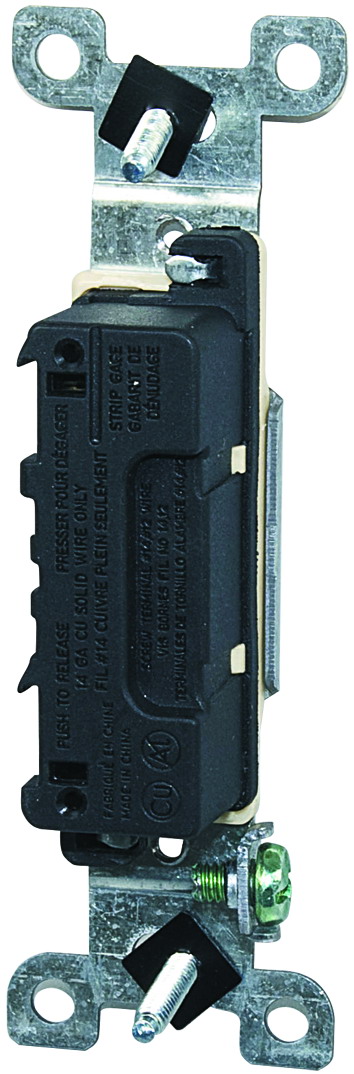

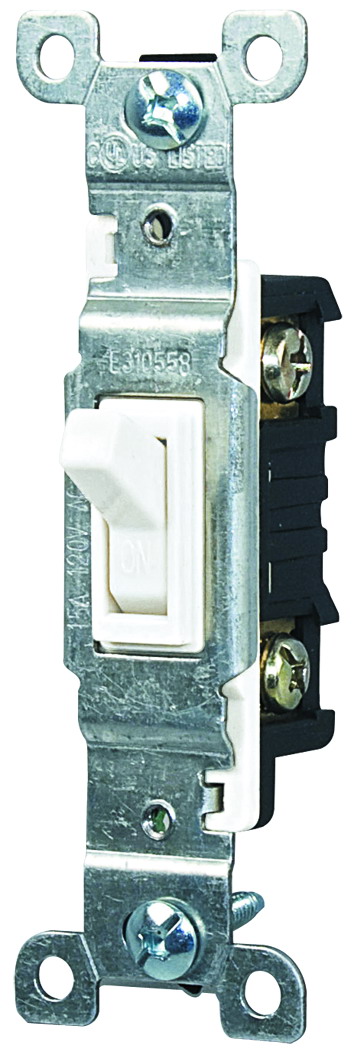

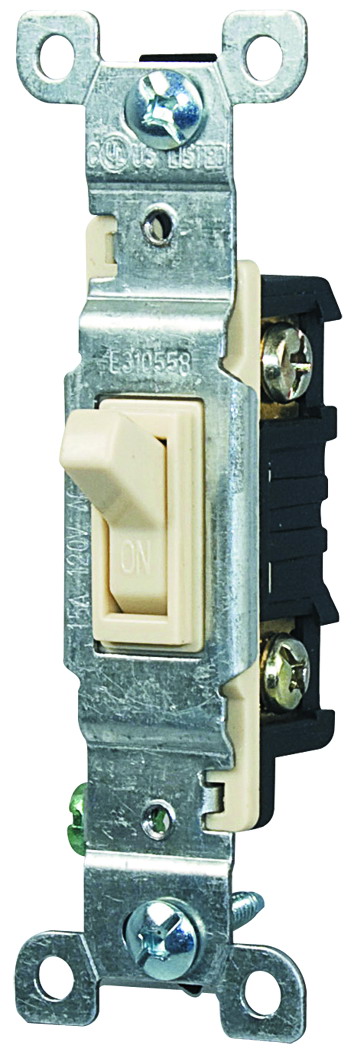

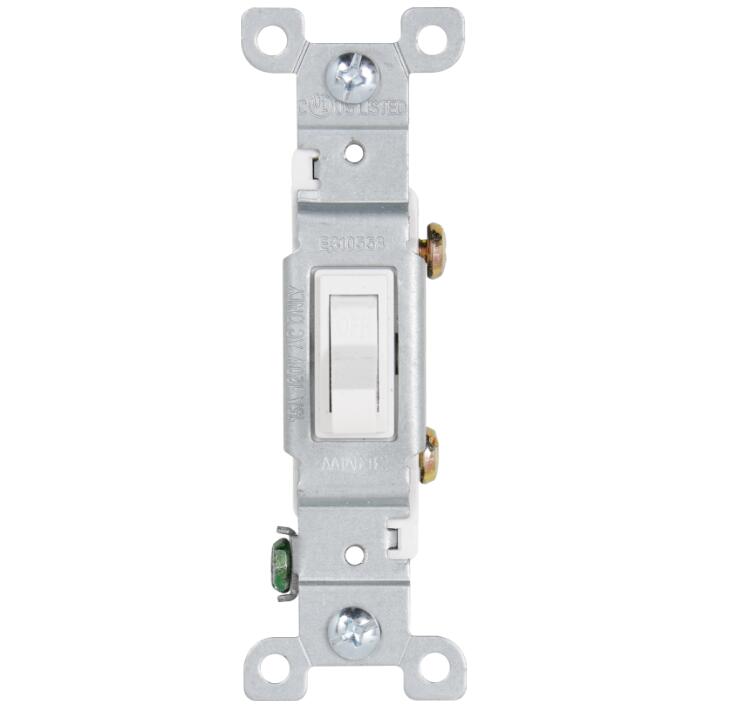

Description: 15A, 120/277V, Toggle Framed Single-Pole AC Quiet Switch, Residential Grade
Color: White, Ivory, Almond, Black
Rating: 15A, 120/277VAC
HP Rating: 1/2HP-120V 2HP-240V-277V
Grounding: Grounding
Termination: Side & Push-in
Dielectric Voltage: Withstands 1500V for 1 minute
Actuator Material: Thermoplastic PC
Body Material: Thermoplastic Nylon
· Extra-long, through-body strap elimanates floating installations and imperfect applications
· Heavy-duty impact-resistant thermoplastic construction for long service life
· Back and side-wiring terminals accept both solid and stranded wire to ease installation
· Smooth, quiet paddle and toggle action
· Narrow back body leaves more room for wires in the box
· Tri-Drive ground, terminal and mounting screws ease installation
· Terminal screw backed out ready for wiring
· Limited Two-Year Warranty
· UL Listed UL 20, UL file #E310558
· ROHS comply
· Environmental: Flammability, UL-94, Rated V0
· Operating Temperature: -40° F to 149° F (-40° C to 65° C)
