LG20

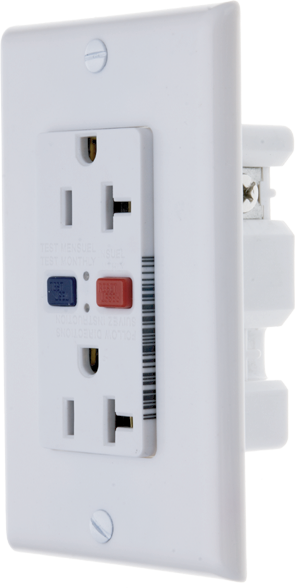

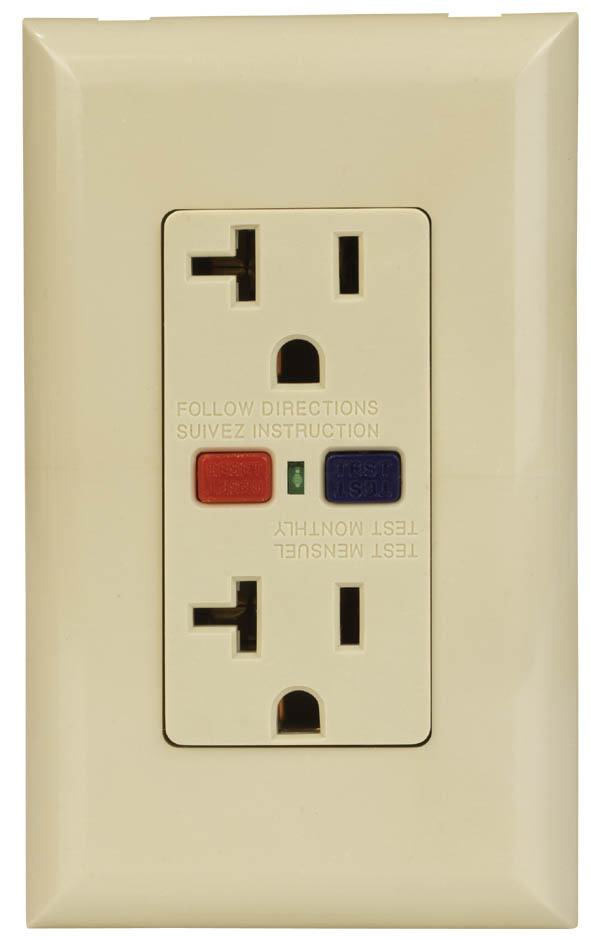

Description: 20 Amp, 125 Volt GFCI Receptacle, ETL Listing

Feature: Electromagnetic Tripping System

Color: White, Ivory, Almond, Black

Rating: 20A, 125VAC

NEMA: 5-20R

Pole: 2

Wire: 3

Termination: Side & Back

Face Material: Thermoplastic

Body Material: Thermoplastic

· Automatically test the GFCI every time the RESET button is pushed in. The GFCI will not reset if the GFCI circuit is not functioning properly

· By blocking reset of the GFCI if protection has been compromised, SmartlockPro® Slim GFCI reduces the possibility of end-users incorrectly assuming that a reset GFCI outlet is providing ground fault protection when it actually is not

· A line-load reversal diagnostic feature is provided which prevents the GFCI from being reset and stops power from being fed to the GFCI receptacle face or through to downstream devices. A green LED indicator on the GFCI's face also illuminates to alert the installer to the line-load wiring reversal

· Compatible with all Decora devices and wallplates

· ETL Listed UL 943 and UL 498

· ROHS comply
